What Is The Difference between Single Shaft And Double Shaft Shredder?

In the world of industrial waste management and recycling, shredders play a crucial role in breaking down large volumes of materials into smaller, more manageable pieces. Whether it’s plastics, metals, rubber, or paper, shredders are designed to reduce the size of materials for easier handling, transportation, and recycling. Single shaft shredders and double shaft shredders are two of the most commonly used machines in this process. While they both serve similar functions, they differ in terms of structure, operation, and applications.

This article explores the differences between single shaft shredders and double shaft shredders, helping you understand which machine is best suited for your specific recycling or waste processing needs.

What is a Single Shaft Shredder?

Structure and Design

A single shaft shredder features one rotating shaft equipped with rotary blades that cut and shred materials into smaller pieces. The material is pushed towards the blade using a hydraulic pusher arm, and the cutting blades work against the material until it is small enough to pass through a screen mesh. The shredder typically includes a hydraulic pusher to push the material into the shredder, ensuring continuous feeding and shredding.

Key Components:

• One rotating shaft with blades.

• Hydraulic-driven pusher arm for material feeding.

• Screen mesh to control the output size.

Applications of Single Shaft Shredder

Single shaft shredders are primarily used for processing solid, dense, and relatively homogeneous materials. They are suitable for materials that do not require high torque or dual-shaft operations. These include:

• Plastic pallets

• Rubber rolls

• Wood lumbers

• Tree branches

• Wood pallets

• Plastic films and fibers

Benefits of Single Shaft Shredders

• Uniform Output Size: The use of a screen beneath the blades ensures a uniform output size, which is ideal for recycling applications where consistency is important.

• Efficient for Soft Materials: Single shaft shredders are particularly effective for shredding soft to medium density materials like plastics, rubber, and paper.

• Cost-Effective: Due to their simple design, single shaft shredders are typically less expensive to maintain and operate compared to their double shaft counterparts.

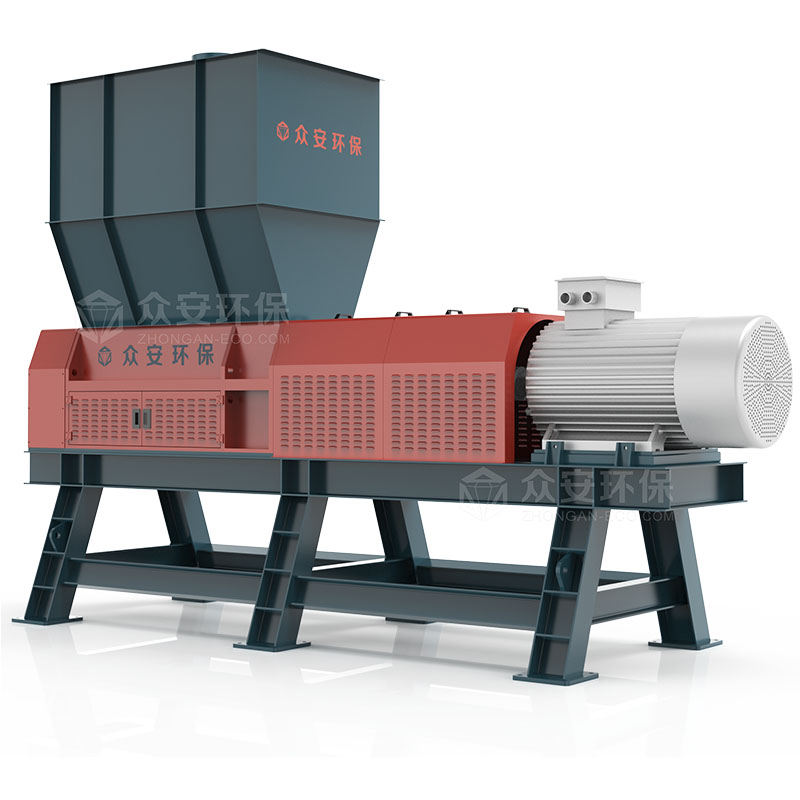

What is a Double Shaft Shredder?

Structure and Design

A double shaft shredder operates with two counter-rotating shafts, each equipped with blades that work together to shear and tear materials apart. Unlike the single shaft shredder, the double shaft shredder does not use a hydraulic-driven pusher or screen. Instead, the two rotating shafts grab and pull the material into the machine, where it is shredded through shear force and torque.

Key Components:

• Two rotating shafts with interlocking blades.

• No hydraulic pusher or screen mesh.

• High torque and low-speed rotation.

Applications of Double Shaft Shredder

Double shaft shredders are ideal for processing larger, bulkier, and more irregular materials. Their ability to handle mixed materials and tough materials makes them suitable for:

• Car/truck tires

• Plastic drums

• Metal scrap

• E-waste

• Plastic/steel barrels

• Mixed waste streams (e.g., municipal solid waste, industrial waste)

Benefits of Double Shaft Shredders

• High Torque and Efficiency: The counter-rotating shafts provide high torque, making double shaft shredders ideal for tough and bulky materials.

• Versatility: These machines can handle a wide variety of materials, including mixed waste, making them highly versatile.

• Durability: The robust construction and shear-based cutting ensure that the shredder is durable and can handle heavy-duty applications.

• No Output Size Control: Since there is no screen, the output size is typically more random, which may be desirable in certain applications where uniformity is not a requirement.

Key Differences Between Single Shaft and Double Shaft Shredders

1. Machine Structure

• Single Shaft Shredder:

• Features one rotating shaft with a hydraulic-driven pusher.

• Typically includes a screen mesh to control the output size.

• Double Shaft Shredder:

• Features two counter-rotating shafts with interlocking blades.

• Does not require a hydraulic-driven pusher or screen, relying on the two shafts to shear and tear materials.

2. Material Processing

• Single Shaft Shredder:

• Ideal for processing solid, dense, and relatively uniform materials such as plastic pallets, rubber rolls, and wood.

• The output size is controlled by the screen mesh beneath the blades, ensuring uniformity.

• Double Shaft Shredder:

• Best suited for larger, bulkier, and more irregular materials like tires, plastic drums, and e-waste.

• Output size is more random since there is no screen mesh, which may be advantageous in some industrial applications.

3. Shredding Efficiency

• Single Shaft Shredder:

• Works well for continuous shredding of softer materials that require a consistent size reduction.

• Processing efficiency is high for soft materials but less efficient for hard, bulky materials.

• Double Shaft Shredder:

• Provides higher torque, making it more efficient at shredding tough and bulky materials, such as tires and mixed waste streams.

• The low-speed, high-torque operation ensures high shredding efficiency even for tough materials.

4. Maintenance and Cost

• Single Shaft Shredder:

• Simpler design and operation lead to lower maintenance costs and fewer components that require attention.

• More affordable to operate and maintain, making it a cost-effective choice for companies processing uniform materials.

• Double Shaft Shredder:

• More complex structure and higher number of moving parts result in higher maintenance costs.

• While they may require more frequent servicing, their ability to handle tough materials often justifies the investment.

5. Energy Consumption

• Single Shaft Shredder:

• Typically consumes less energy due to its simple structure and less powerful motor requirements.

• Ideal for applications where energy efficiency is a concern and material hardness is moderate.

• Double Shaft Shredder:

• Generally consumes more energy because of the higher torque needed for shredding tough, bulky materials.

• However, the increased efficiency in handling complex materials compensates for the higher energy consumption.

Comparison Chart: Single Shaft vs. Double Shaft Shredders

Which Shredder is Right for You?

Choosing between a single shaft shredder and a double shaft shredder depends on the specific needs of your recycling or waste processing operation. Here’s a quick guide to help you make the right choice:

Choose a Single Shaft Shredder if:

• You primarily process soft materials such as plastic films, rubber, and wood.

• You need consistent output size for materials like paper, plastic pallets, and general waste.

• You have a smaller operation and need a cost-effective and energy-efficient solution.

Choose a Double Shaft Shredder if:

• You need to shred tough, bulky, or mixed materials such as car tires, plastic drums, and e-waste.

• You need a high-torque machine that can handle a variety of complex waste streams.

• You can manage higher maintenance costs and energy consumption for the added efficiency in processing tough materials.

Conclusion

Both single shaft shredders and double shaft shredders have their unique strengths and are suited to different types of materials and applications. While single shaft shredders are ideal for processing softer, uniform materials, double shaft shredders excel in handling tough, bulky, and mixed waste streams. By understanding the differences between these two machines, you can make an informed decision about which shredder best fits your needs.

At ZHONGAN-ECO, we offer a range of high-quality double shaft shredders designed to meet the demands of various industries. Whether you are processing soft plastics, hard metals, or bulky industrial waste, our shredders provide efficient, reliable solutions for all your shredding requirements. For more information, contact ZHONGAN-ECO today and take the first step towards optimizing your waste management and recycling operations.
